P171575

原廠零件號
P171575
製造商
唐納森/Donaldson
產品描述
液壓油濾清器HYDRAULIC FILTER, CARTRIDGE
相關型號
P171573  Synthetic, Efficiency Beta 1000: 11 micron
P171574  Synthetic, Efficiency Beta 1000 23 micron
P171576  Cellulose, Efficiency Beta 2 27 micron

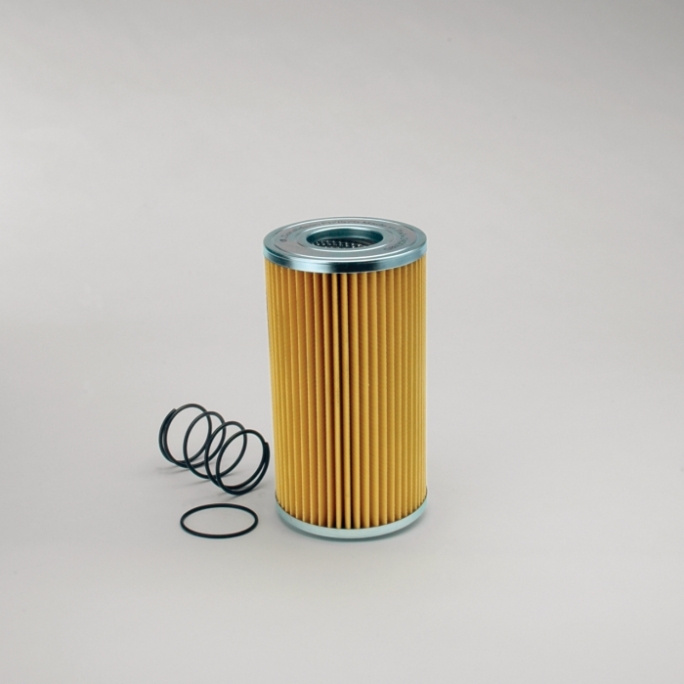

圖示與尺寸
Outer Diameter 140 mm (5.51 inch)
Inner Diameter 65 mm (2.56 inch)
Length 250 mm (9.84 inch)
Efficiency Beta 2 7 micron
Efficiency Beta 1000 23 micron
Bypass Valve Yes
Bypass Valve Setting LR 1.5 bar (22 psi)
Collapse Burst 10 bar (145 psi)
Style Cartridge
Series FIK
Media Type Cellulose
Primary Application F.B.O. CR6001
