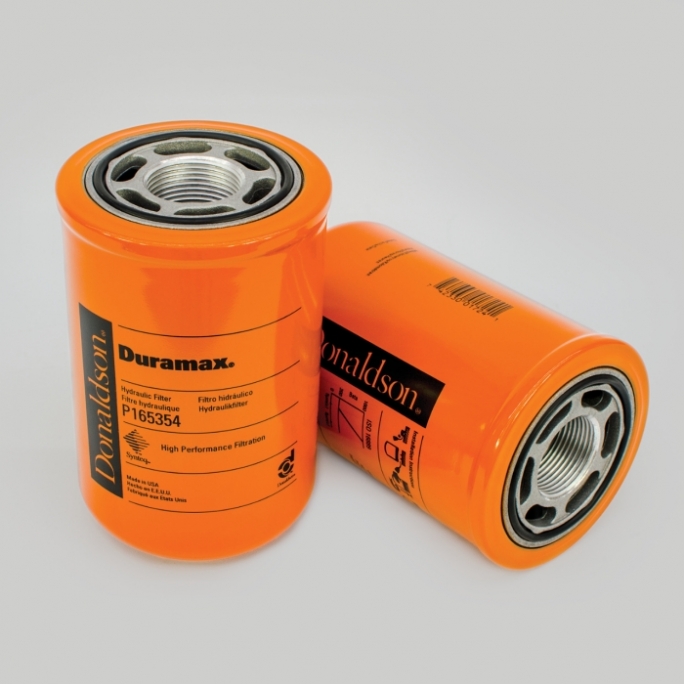

P165354

原廠零件號
P165354
製造商
唐納森/Donaldson
產品描述
旋裝式液壓油濾清器, HYDRAULIC FILTER, SPIN-ON DURAMAX
相關型號
P163419  Cellulose, Efficiency Beta 2: 7 micron, Efficiency Beta 200: 19 micron, Efficiency Beta 1000: 23 micron
P163542  Synteq XP, Efficiency Beta 2: 4 micron, Efficiency Beta 1000: 11 micron
P164375  Synthetic, Efficiency Beta 2: 4 micron, Efficiency Beta 200: 9 micron, Efficiency Beta 1000: 11 micron
P164381  Synthetic, Efficiency Beta 2: 7 micron, Efficiency Beta 1000: 23 micron
P165335  Synthetic, Efficiency Beta 2: 14 micron, Efficiency Beta 1000: 50 micron

圖示與尺寸
Outer Diameter 97 mm (3.82 inch)
Thread Size 1 3/8-12 UN
Length 151.64 mm (5.97 inch)
Gasket OD 70 mm (2.76 inch)
Gasket ID 63 mm (2.48 inch)
Efficiency Beta 2 4 micron
Efficiency Beta 1000 6 micron
Efficiency Test Std ISO 16889
Style Spin-On
Series HMK04/24
Brand Duramax®
Media Type Synteq XP
