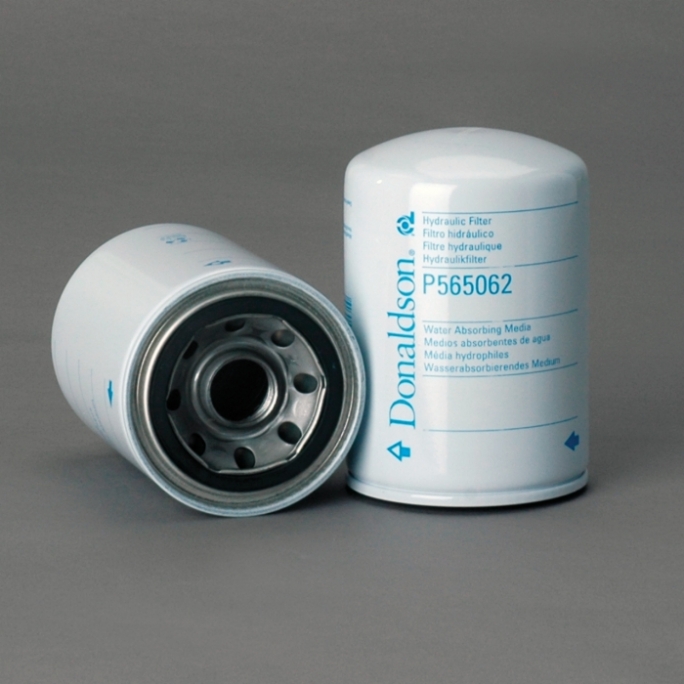

P565062

原廠零件號
P565062
製造商
唐納森/Donaldson
產品描述
旋裝式液壓油濾清器, HYDRAULIC FILTER, SPIN-ON
相關型號
P550274  Wire Mesh, Efficiency Beta 2: 150 micron
P551551  Cellulose, Efficiency Beta 2: 7 micron, Efficiency Beta 1000: 23 micron
P551553  Cellulose, Efficiency Beta 2: 17 micron, Efficiency Beta 200: 32 micron
P560693  Synthetic, Efficiency Beta 1000: 11 micron
P560694  Synthetic, Efficiency Beta 1000 23: micron
P564967  Synthetic, Efficiency Beta 1000: 5 micron
圖示與尺寸
Outer Diameter 93 mm (3.66 inch)
Thread Size 1-12 UN
Length 135.89 mm (5.35 inch)
Gasket OD 71.5 mm (2.81 inch)
Gasket ID 61.5 mm (2.42 inch)
Efficiency Beta 2 10 micron
Style Spin-On
Series SP15/25
Media Type Synthetic, Water Absorbent
