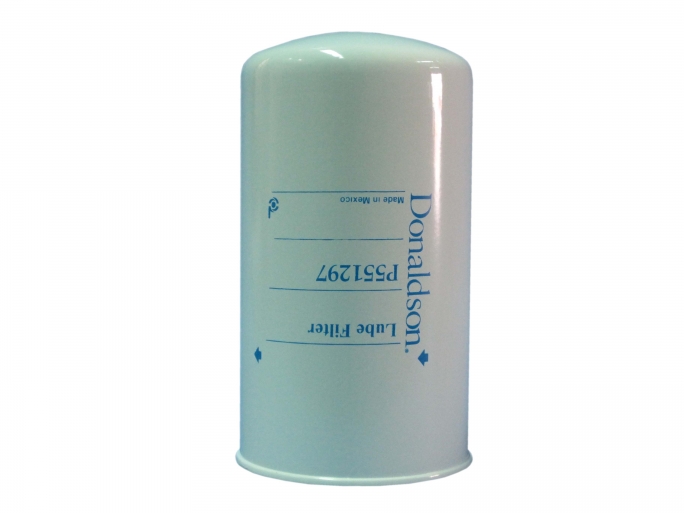

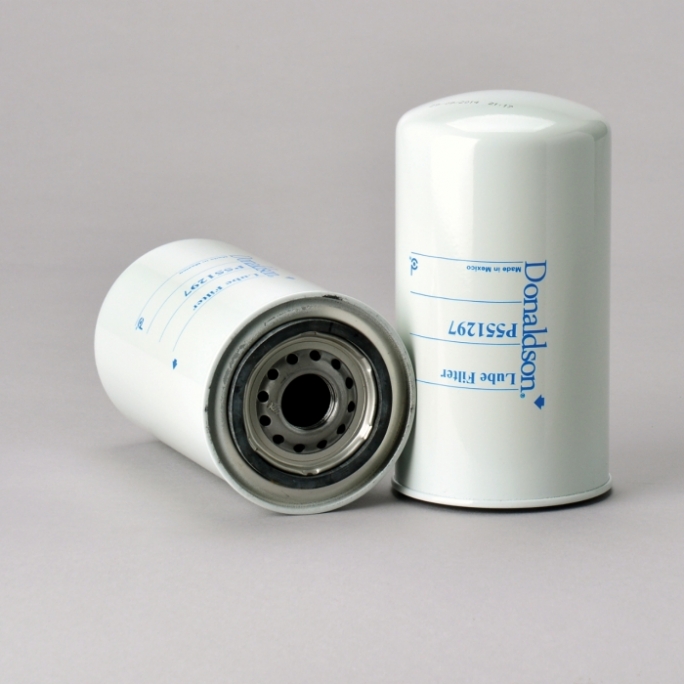

旋裝式全流型機油過濾器, LUBE FILTER, SPIN-ON FULL FLOW

Outer Diameter	93 mm (3.66 inch)
Thread Size	1-12 UN
Length	175 mm (6.89 inch)
Gasket OD	72 mm (2.83 inch)
Gasket ID	63 mm (2.48 inch)
Efficiency 99%	45 micron
Anti-Drainback Valve	Yes
Bypass Valve	Yes
Bypass Valve Setting LR	1.3 bar (19 psi)
Bypass Valve Setting HR	1.5 bar (22 psi)
Collapse Burst	6.9 bar (100 psi)
Type	Full-Flow
Style	Spin-On
Primary Application	KOMATSU 6002115213
