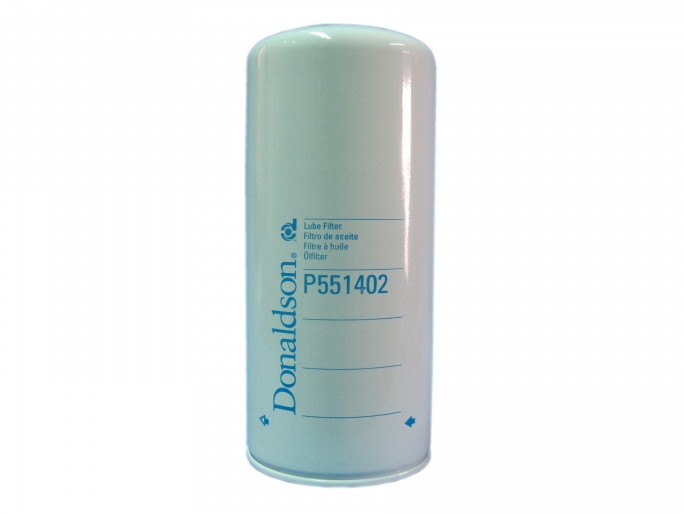

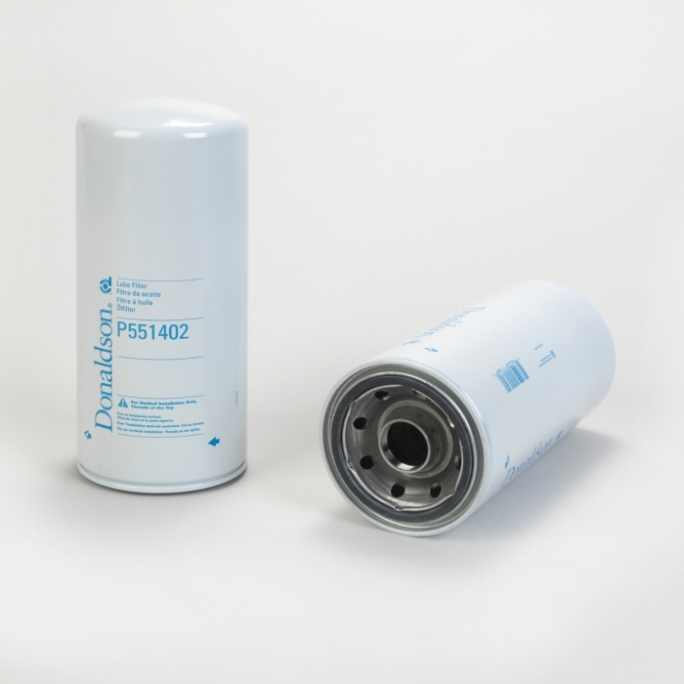

旋裝式全流型機油過濾器, LUBE FILTER, SPIN-ON FULL FLOW

Outer Diameter	135 mm (5.31 inch)
Thread Size	1 1/2-16 UN
Length	308 mm (12.13 inch)
Gasket OD	109 mm (4.29 inch)
Gasket ID	100 mm (3.94 inch)
Efficiency 99%	21 micron
Efficiency Test Std	ISO 16889
Bypass Valve	Yes
Bypass Valve Setting LR	2.2 bar (32 psi)
Bypass Valve Setting HR	2.7 bar (39 psi)
Media Type	Cellulose
Type	Full-Flow
Style	Spin-On
Primary Application	Vertical installation only – Threads at the top
