| 產品描述 |
|

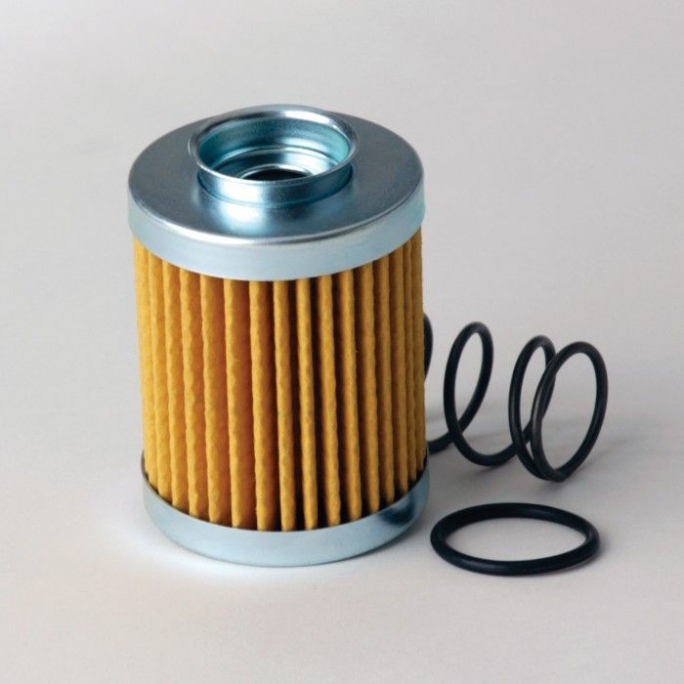

濾芯式液壓油過濾器, HYDRAULIC FILTER, CARTRIDGE
|
|
| 相關型號 |
|
P171500 Wire Mesh, Efficiency Beta 2: 90 micron
P171501 Synthetic, Efficiency Beta 1000: 11 micron
P171504 Cellulose, Efficiency Beta 2: 27 micron
|
|
| 圖示與尺寸 |
|
Outer Diameter |
52 mm (2.05 inch) |
|
Inner Diameter |
25.5 mm (1.00 inch) |
|
Length |
67 mm (2.64 inch) |
|
Efficiency Beta 2 |
7 micron |
|
Efficiency Beta 1000 |
23 micron |
|
Bypass Valve |
Yes |
|
Bypass Valve Setting LR |
1.5 bar (22 psi) |
|
Collapse Burst |
10 bar (145 psi) |
|
Style |
Cartridge |
|
Series |
FIK |
|
Media Type |
Cellulose |
|
Primary Application |
F.B.O. CR30 |
|
|
|
