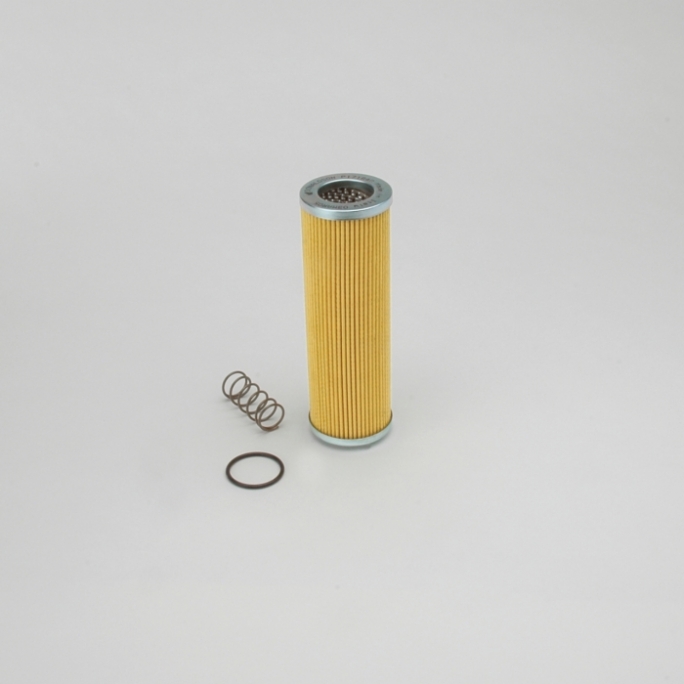

濾芯式液壓油過濾器, HYDRAULIC FILTER, CARTRIDGE

-

Outer Diameter	70 mm (2.76 inch)
Inner Diameter	42 mm (1.65 inch)
Length	209 mm (8.23 inch)
Gasket OD	46.6 mm (1.83 inch)
Gasket ID	39.6 mm (1.56 inch)
Overall Length	214.5 mm (8.44 inch)
Efficiency Beta 2	10 micron
Efficiency Beta 200	32 micron
Efficiency Beta 1000	36 micron
Efficiency Test Std	ISO 16889
Bypass Valve	Yes
Bypass Valve Setting LR	1.5 bar (22 psi)
Collapse Burst	10 bar (145 psi)
Maximum Operating Temperature	120 °C (248 °F)
Style	Cartridge
Series	FIK
Media Type	Cellulose
Primary Application	DONALDSON FSK
